Description

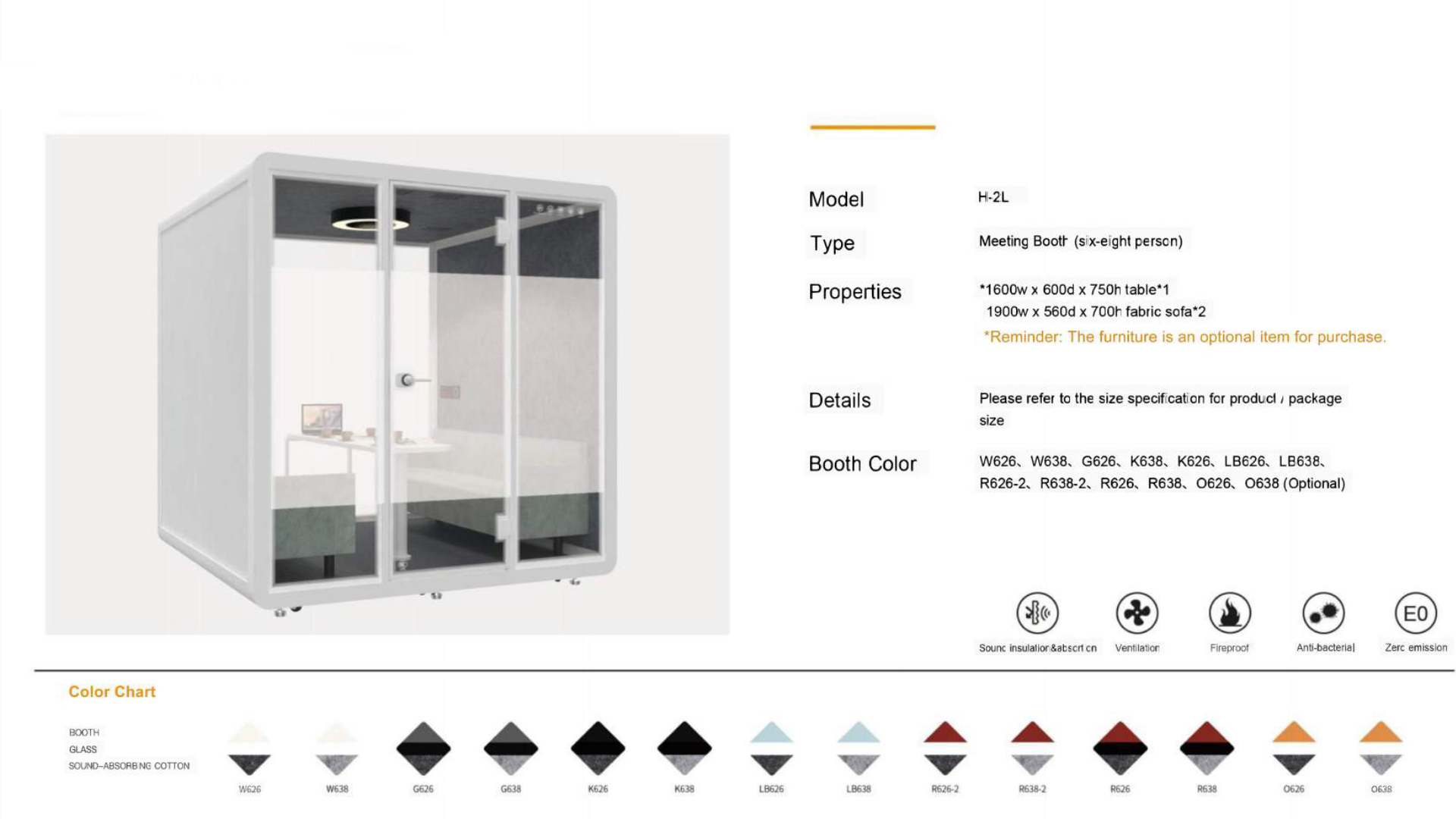

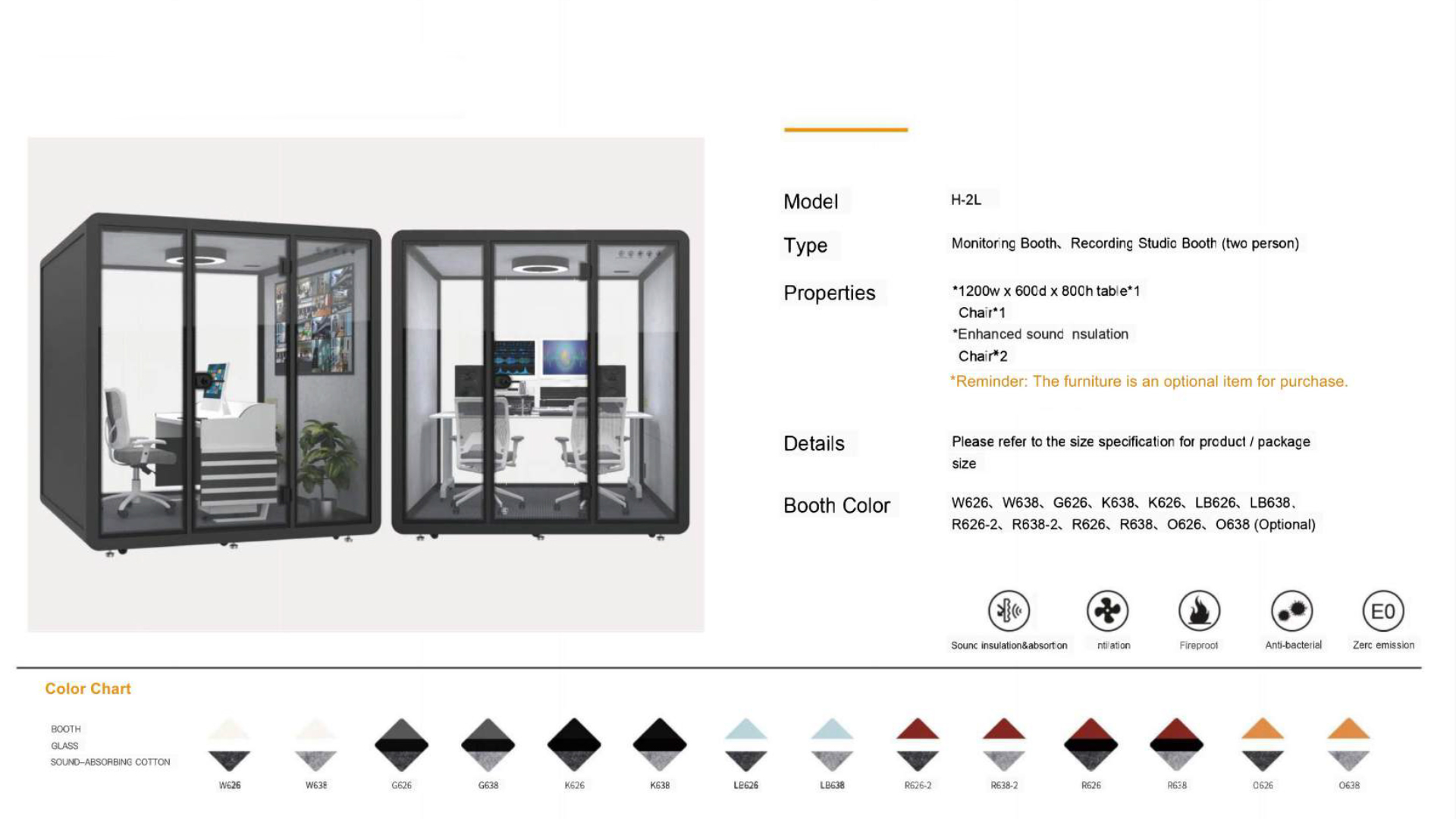

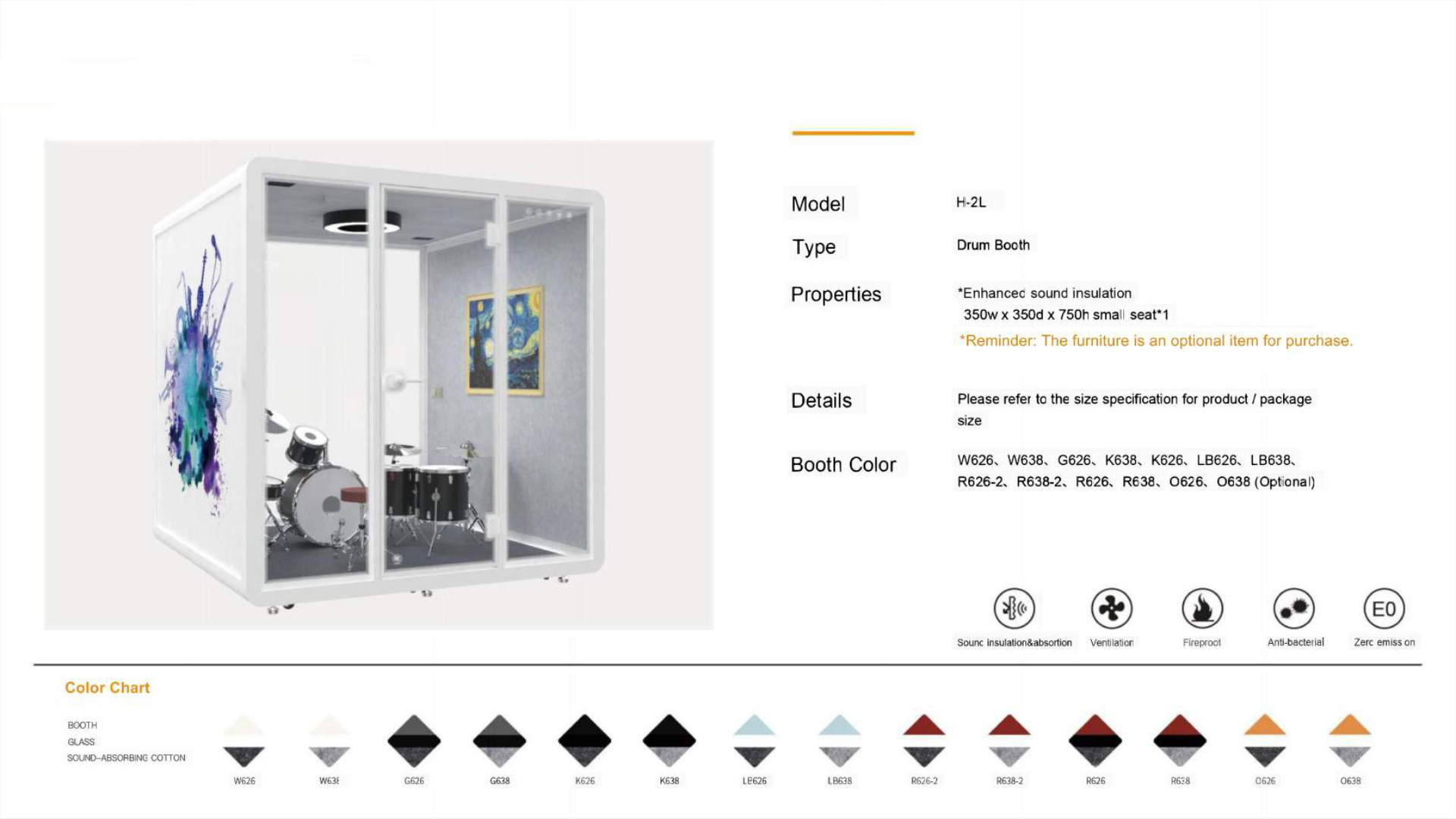

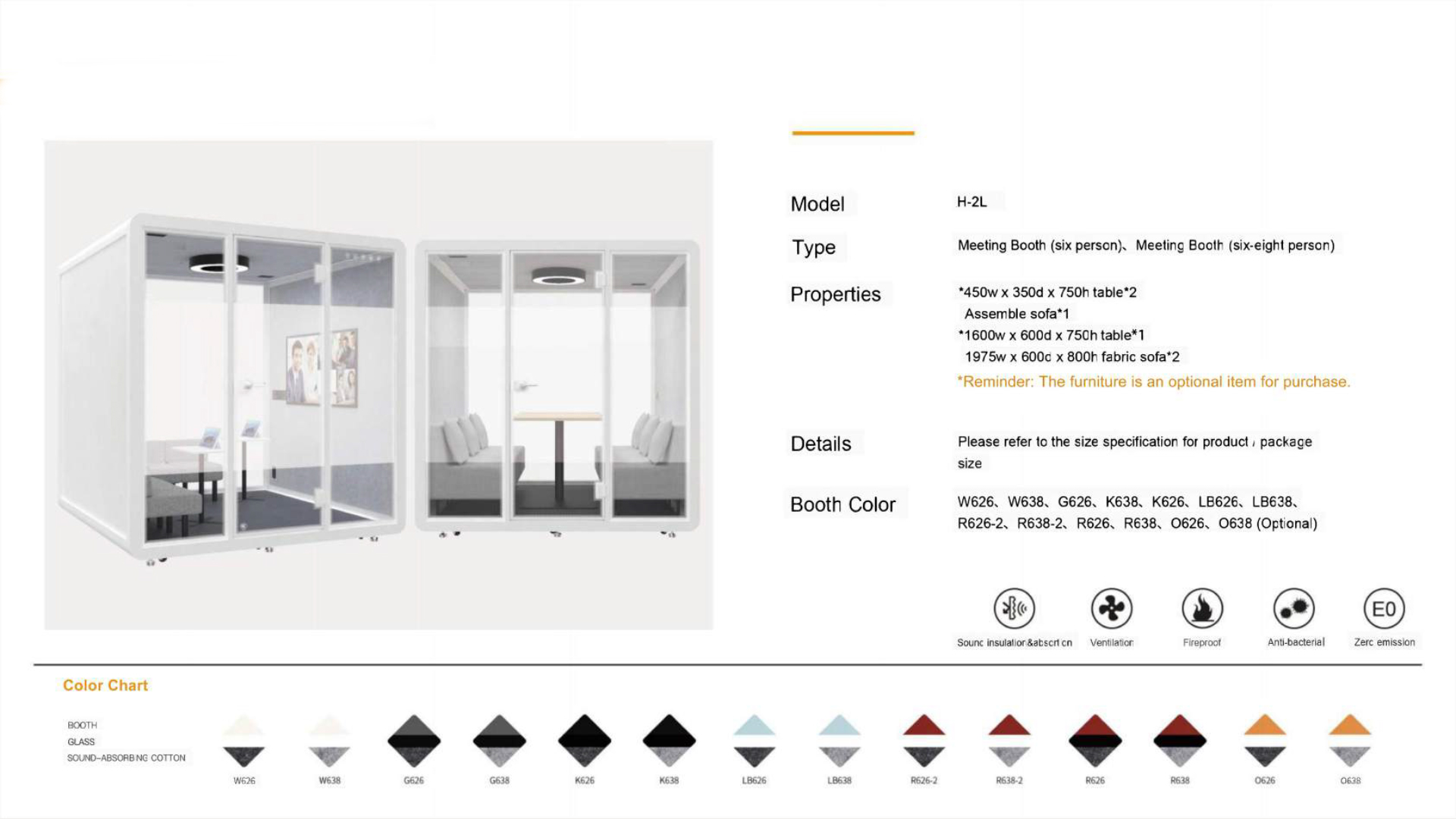

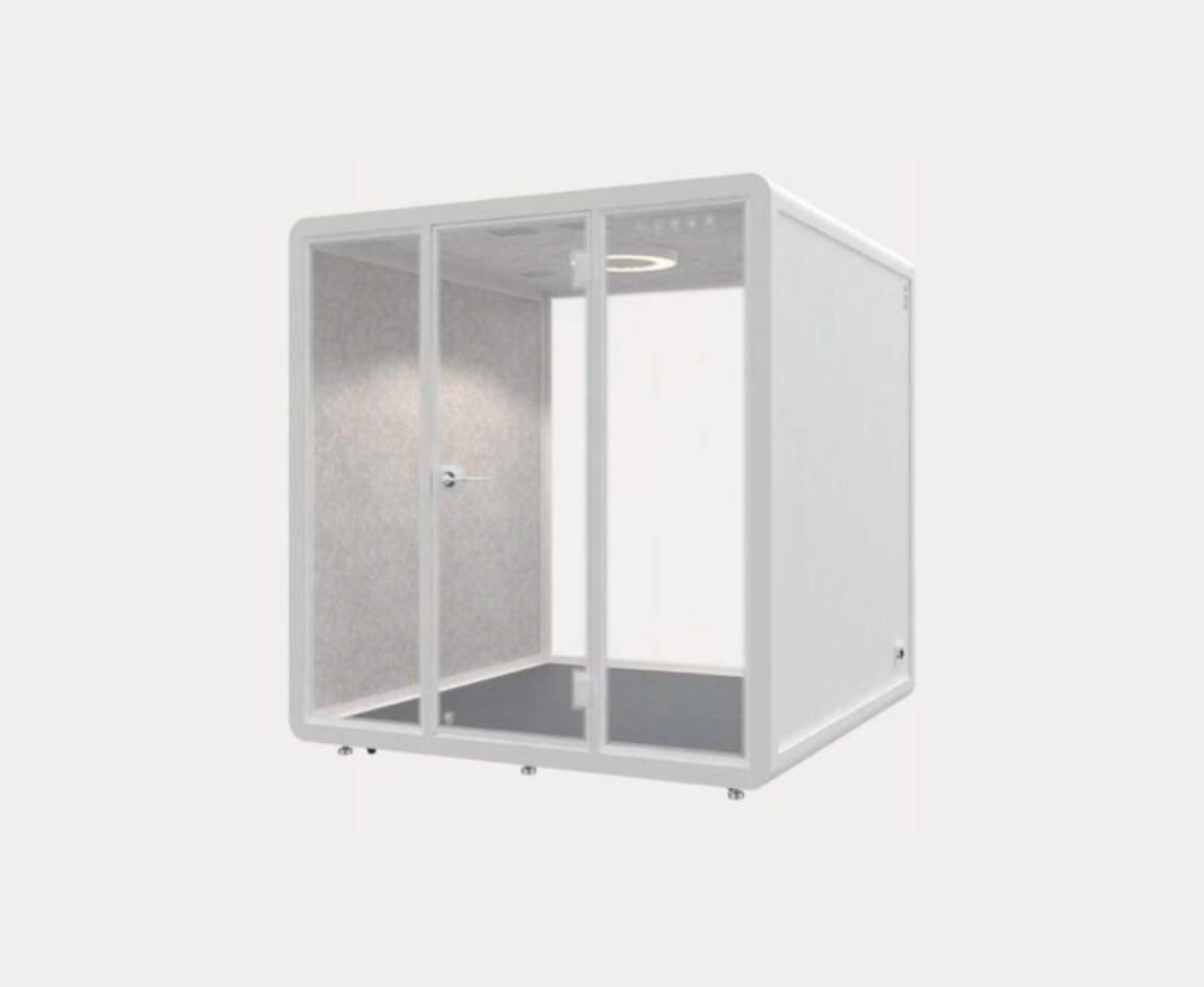

Modern Soundproof Office Pods – H Series – 2L
Our Modern soundproof office pods provide you a private and comfortable place to do your creative works. Our office pod structure consists of supporting frame made from aerospace-grade aluminum panels,
The wall is acoustically four layers of sound insulation and vibration reduction, sandwich structure wallboard, and double-sided sound insulation glasses, which application you can find in high-speed rail train.
Acoustic PET panel for interior wall and ceiling, and nylon carpet on the floor, which reaches the acoustic environment request, in order to simplify the assembly process, we only use few accessories of fastener.
The air in the booth is fully circulated in every three minutes, equipped with 4000K natural color lighting 12V-USB power supply and power rated for 100-220V/50HZ
Powder coated for the frame and board without color difference, the frame and board are made of aluminum. In addition to the advantages of fireproofing, the frame and board can be treated with the same surface treatment without colour difference.

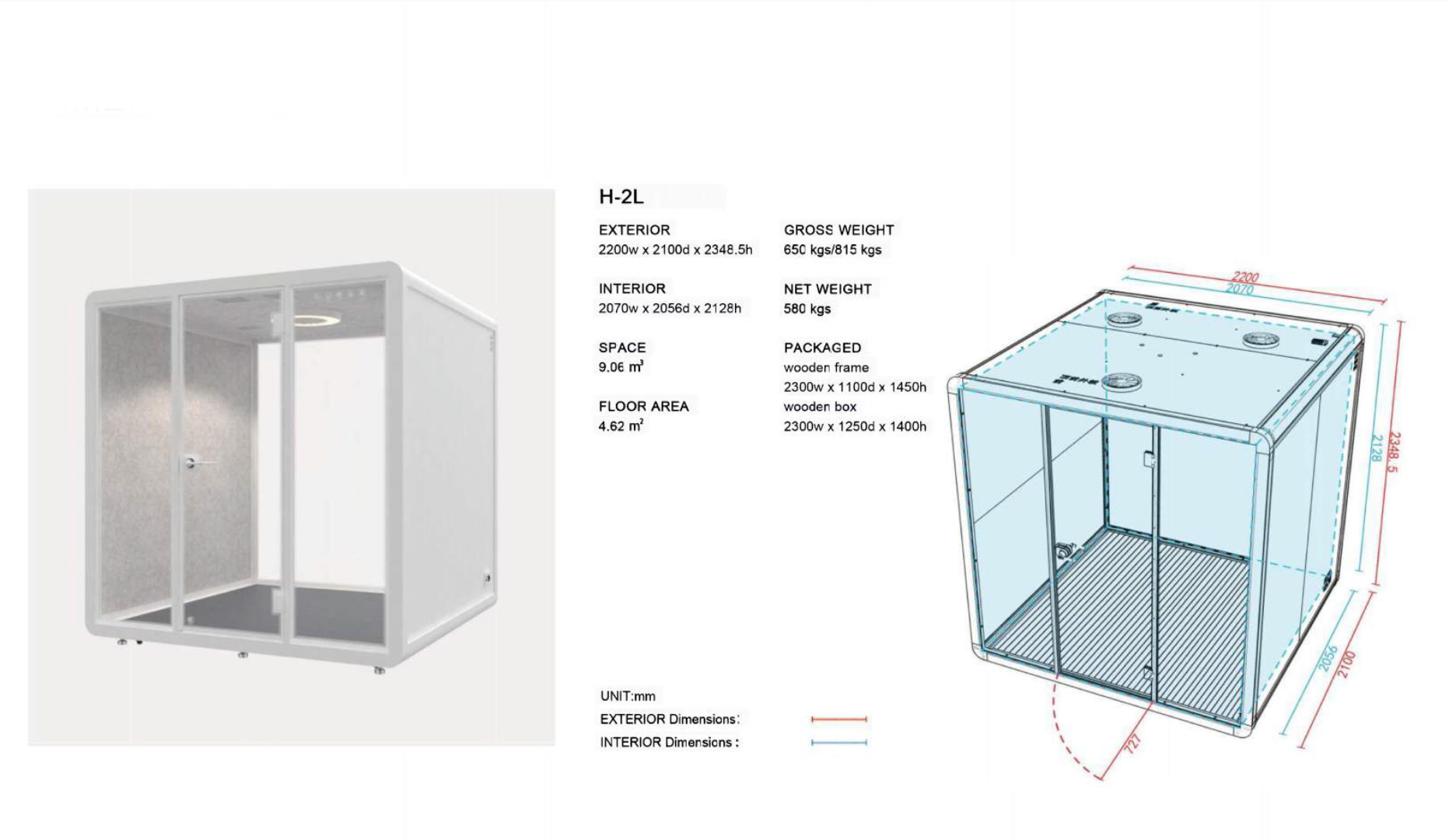

Office pod specifications
Double layer soundproof glass – Double layer hollow soundproof glass, only 30-35dB
- Our pods are made of double layer aluminum honeycomb panel. The surface of the aluminum plate is pasted with high-density damping sound insulation felt to meet the requirements of sound insulation. The interior decoration is matched with acoustic materials to meet the requirements of the acoustic environment.
- Design value; Rw+Ctr35db(+5db) and RT0.25s(+0.1s).
Ventilation System – Equipped with powerful exhaust fans, ultra-quiet, fresh air in 3 minutes
- We made multiple sound barriers for the ventilation tunnel to lower the noise of ventilation fan, meanwhile, the sound barrier can also reduce much of the sound transmission. The air in the booth can be circulated in 2-3 minutes, to ensure it won’t be stuffy in the booth.
LED Lighting – 4000K natural light color temperature, 150L lighting system
- Equipped with 4000K daylight color temperature LED lighting system 150LX, it would satisfy the needs of normal activities. in the event of additional power requirements, a backup power supply is readily installed inside the booth.
Universal Power Socket – human body intelligent sensor + 100-240V/50-60Hz + 12V USB
- Our booth is equipped with 12V-USB power supply and power rated for 100-240V/50-60Hz, complying with common equipment requirements, The three control switches control one lamp and two exhaust fans, respectively.
Power consumption – 45W energy consumption
Product Key Features
Alloy door lock
- The lock adopts a high-quality zinc alloy lock, a beautiful atmosphere, and strong corrosion resistance. The lock core is made of copper lock core, safe and wear-resistant, with strong flexibility, which can fully meet the daily use needs.
Hook and loop fasteners
- Magic tape band is used for the back side installation of acoustic materials. It is environmentally friendly and odorless, and it complies with European ROHS standards.
- Stable and fast installation facilitates repeated used in the future.
- The material and application desigh of magic tape has successfully constructed a model which is easy to disassemble and assemble several times.
Sound insulation tempered glass
- Our booth adopts train type sound insulation tempered glass, which meets the requirements of sound insulation and meets the safety and stability of installation and use.
Acoustic Carpet
- Removable environmentally friendly floor mat, with the Non-vulcanised rubber carpet mat bottom lining and rubber tangerine PE staple fiber braided surface adaptable a contact ABS overhead cushion;
- Customised shock absorption carpet, complete coverage the surface of the inner under the soundproof floor, increase shock absorption effect, improve the sound insulation function of the office soundproof pod;
- It is more skin-friendly and is produced with close-skin material, without any uncomfortable feeling in keep touching in a long time.
